How to bind wire

 HOME > Assembly > R2 VERSION > How to bind wire
You can watch the video on how to assemble at www.freelock.co.kr

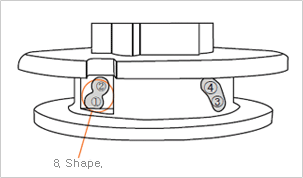

R2 How to bind wire

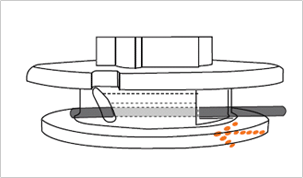

The steps for binding the string   Adjust to the starting position and insert the wire to the first (outside) hole followed by arrow.

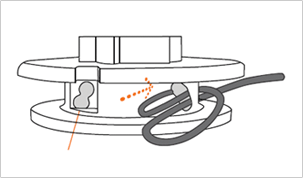

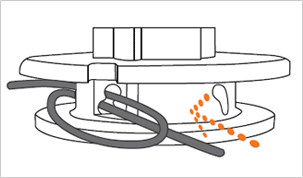

The wire that comes out of the first (outside) hole is turned around and then insert into the second (inside) hole.   The view from the side

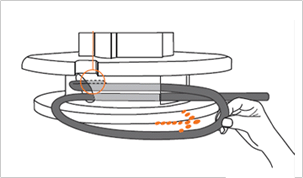

The wire that comes out of the second (inside) hole is then inserted into the second (inside) hole again.   As in the picture, pull the string until the knot is fixed inside.

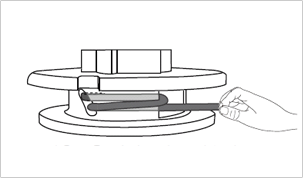

String binding is completed when the rest of string is pulled.   The other side of string should be inserted symmetrically by adjusting to the starting position of binding followed by the same steps.
