I-Stay housing

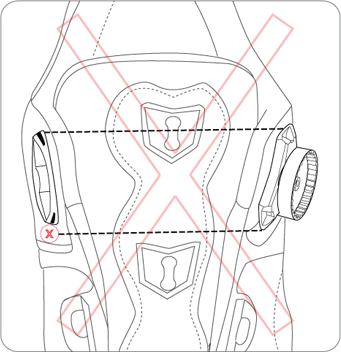

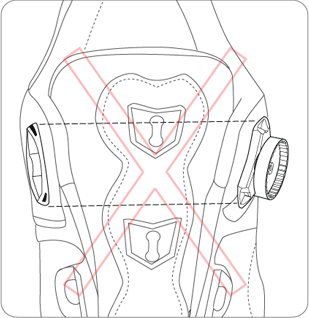

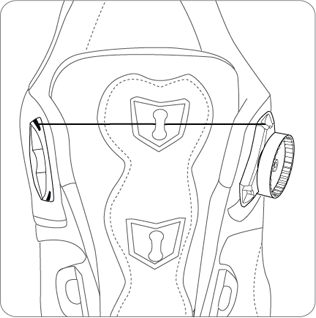

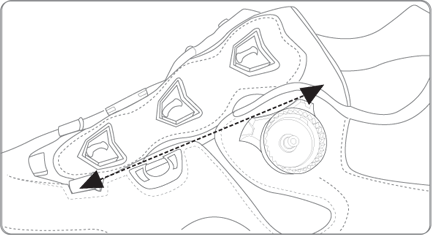

Housing should be stitched in a straight line to a lace guide.


Stitch in a straight line with the other side of guide.		The string should be located in the middle of Tung guide.

The guide suitable for housing size should be used.

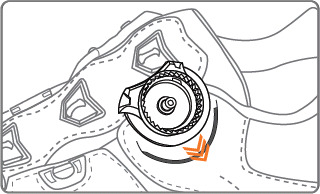

CUT UPPER Stitch Method

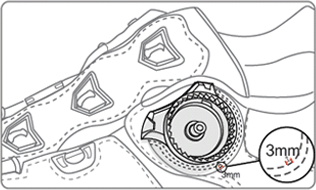

Caution! 1. The interval of stitch should be more than 3 mm. (There is a risk of breakage)		2. Minimize the bonded part (Do not bond on the stitch part.)

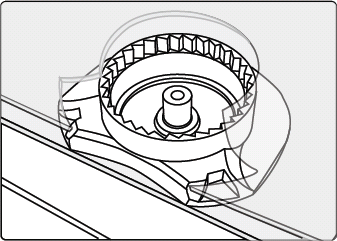

DIE CUT Stitch Method


Caution! 1. The interval of stitch should be more than 3 mm. (There is a risk of breakage)		2. Minimize the bonded part (Do not bond on the stitch part.)
