How to install heel housing

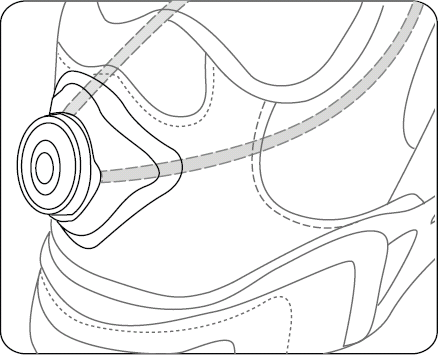

How to install heel housing
Tube should be inserted into the inside of housing.

How to measure length of string

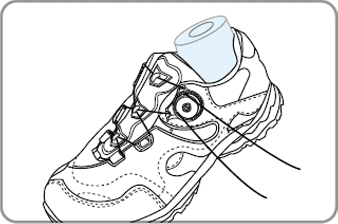

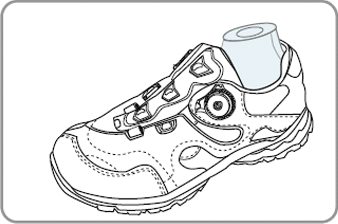

1. Insert the last to shoes.   2. Insert the last.

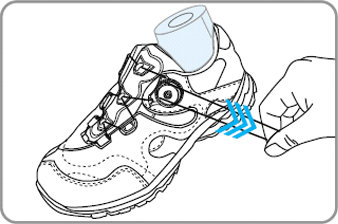

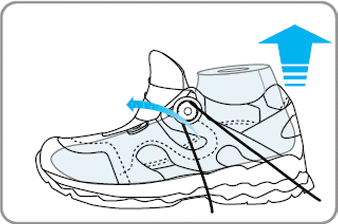

3. Pull until the string is tightened.   4. Take out the last

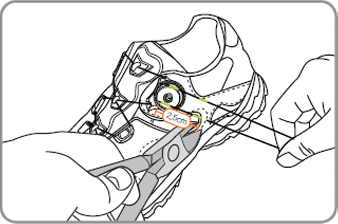

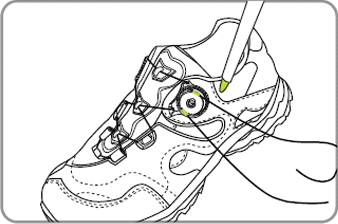

5. Marking on the housing part   6. Space it 2.5cm and cut.

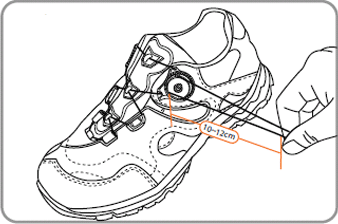

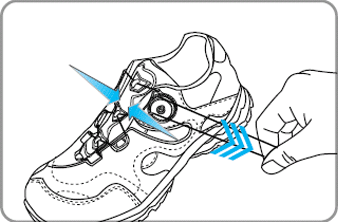

7. Pull the string again.   8. When it is pulled, 10~12 cm is suitable.
